FAAC 844 ER

FAAC 844 ER motor pic

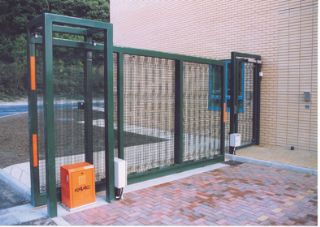

FAAC 844 ER situ pic(1)
Download Specs

The 844 is for sliding gates with a max weight of 1800kg.

844 ER Z16 for rack applications
844 R for rack applications (without pinion, without control board)
844 R CAT for chain applications
844 R RF for chain applications with idle transmission

  • Designed to move commercial or industrial gates in the simplest, most convenient way
  • The special twin-disk anti-crushing clutch, in an oil-bath, enables thrust adjustment from 0 to 110 daN
  • As the gearmotor is non-reversing, no electric locks need be installed
  • In the event of power failure the key operated release device makes it possible to open and close the gate manually
  • Constant, complete oil-bath lubrication of mechanical components plus assembly in a high resistance pressure cast aluminium body ensure a long operating life
  • Electronic programming is by 3 push buttons and an LED display making installation set up easy
  • The control board is contained in a separate protective housing inside the operator and a patented cable gland protects against insect access
